An astonishingly good, woody, resonant thinline semi
DAVE BURRLUCK - GUITARIST MAGAZINE

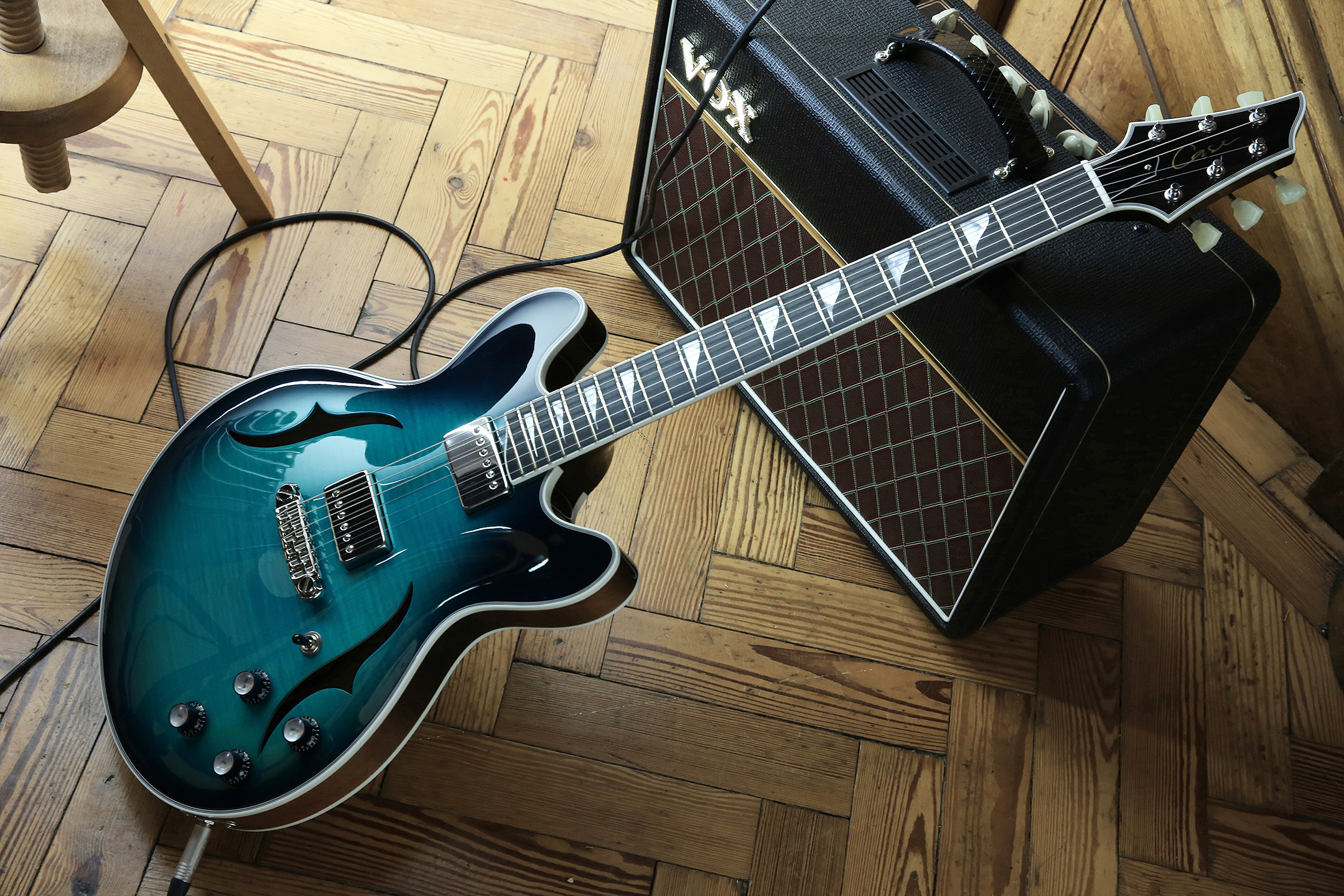

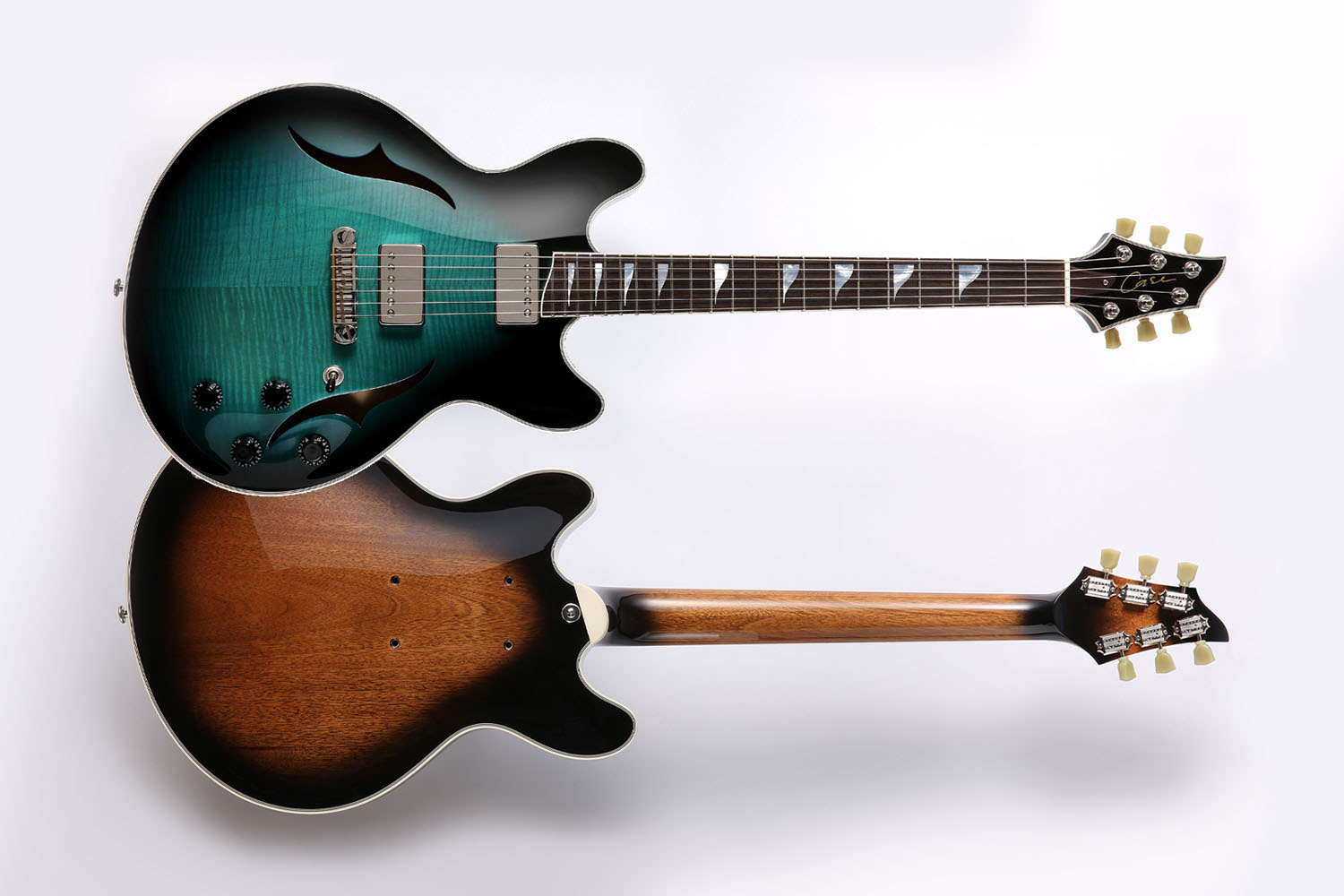

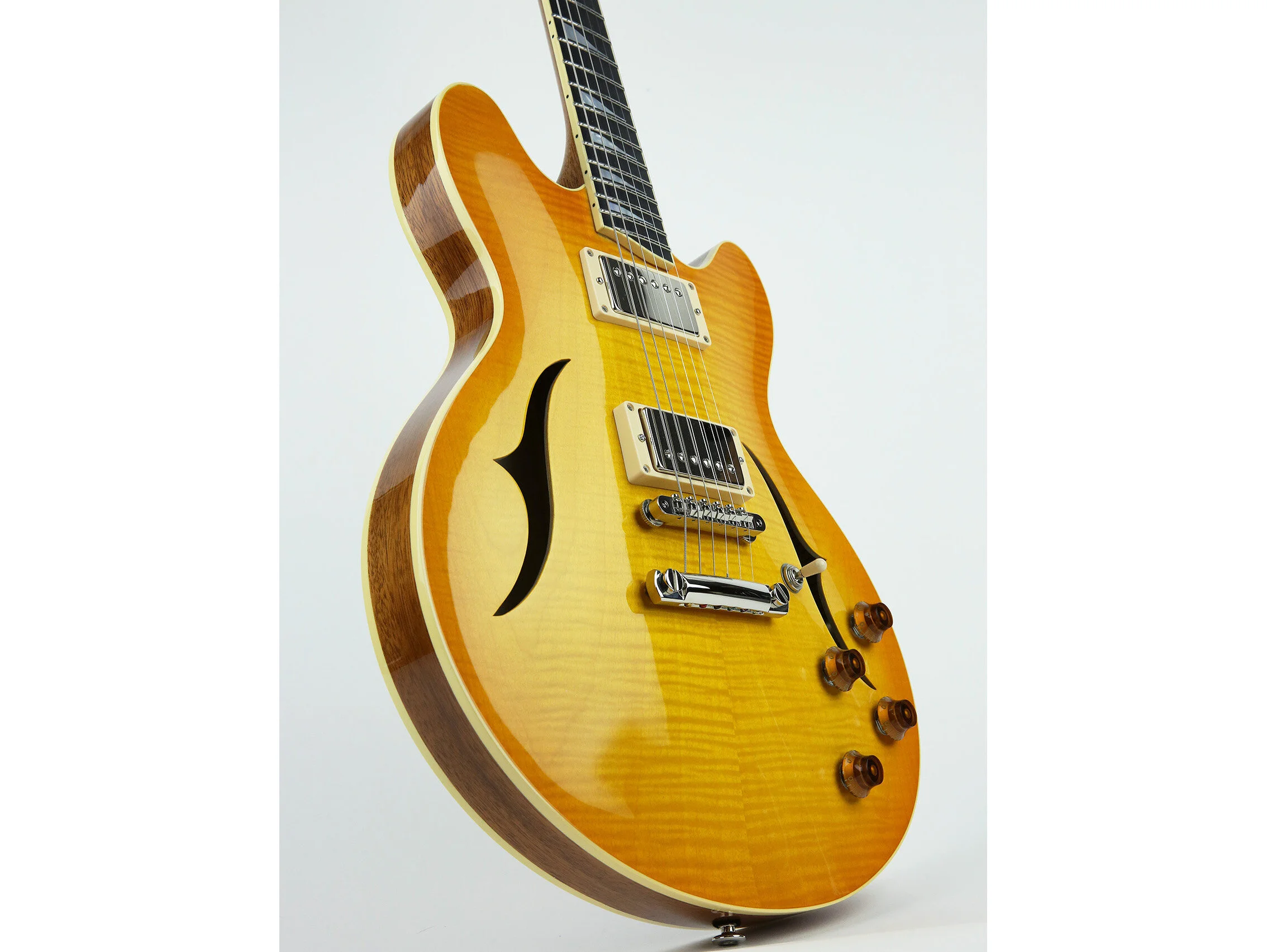

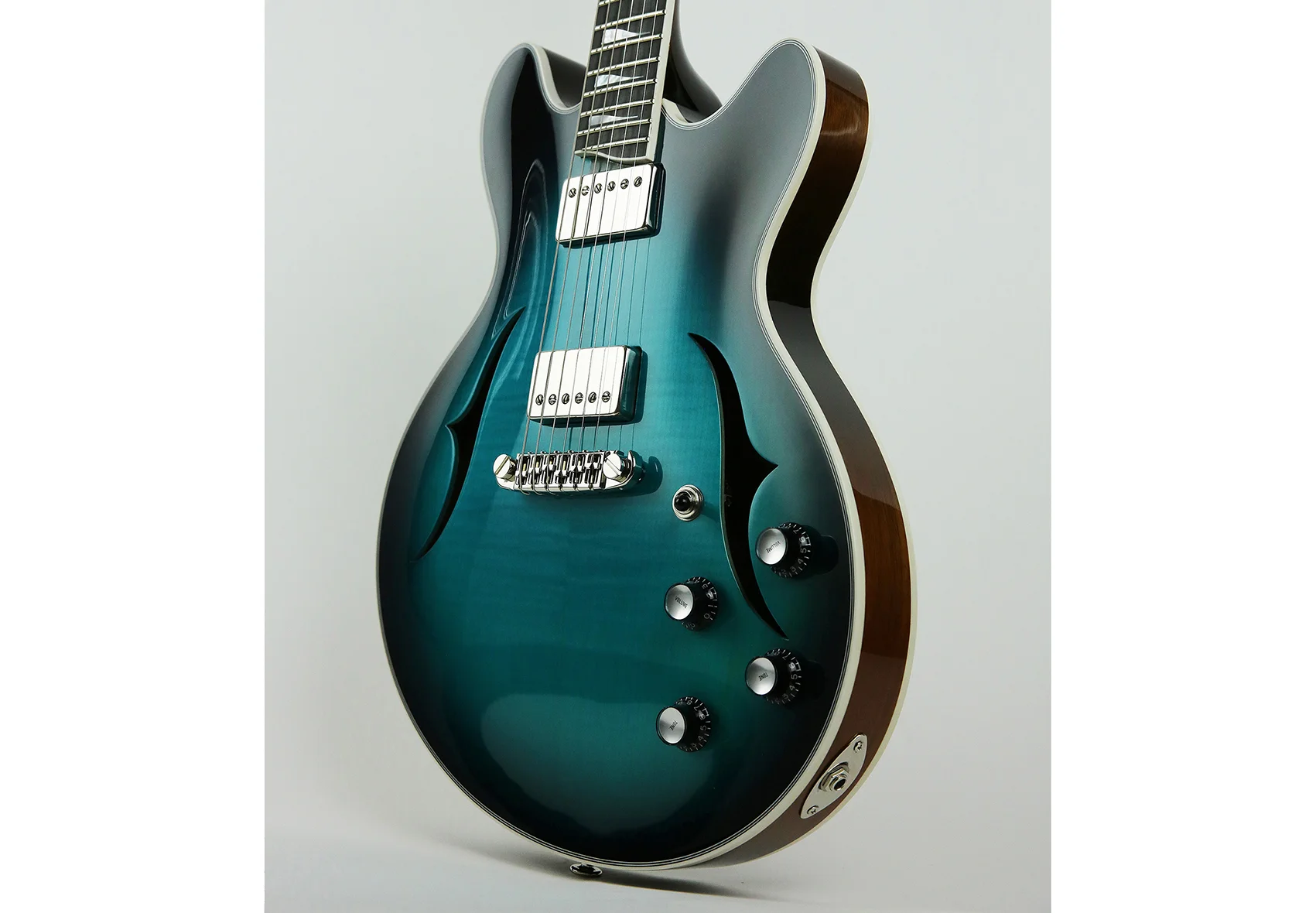

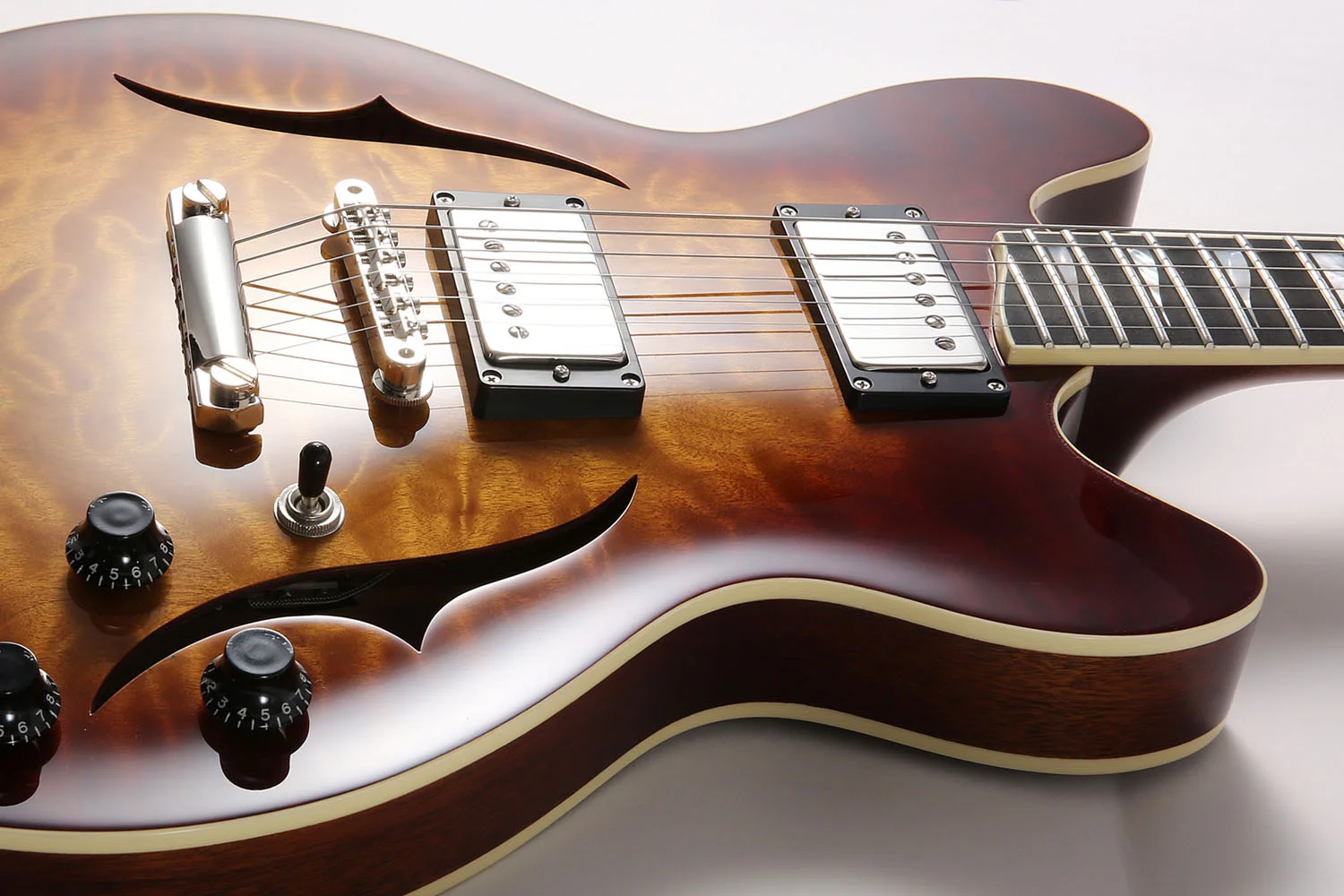

J25 SEMI-HOLLOW
With a 14.25" width, the J25 is slightly smaller than our 15" wide J35 model and is extremely well balanced on the strap. The guitar employs a traditional semi-hollow construction of a laminated body with a mahogany centre block and spruce fillets between the two. The semi-hollow body creates a resonant, responsive tone, while the centre block maximises sustain and keeps feedback to a minimum. The top is made from maple laminates, the back and sides made from mahogany laminates all finished in a stunning sunburst. The neck is carved from quarter sawn mahogany, creating a very stable neck with a great feel. Dark rosewood is chosen for the fingerboard for its warm tone.
All hardware is high quality and you can choose from either a vintage-style Kluson tuneomatic bridge with a lightweight stop bar or an ABM fully adjustable wraparound bridge. Gotoh vintage tuners guarantee fine tuning and smooth operation. High quality CTS pots, Switchcraft pickup selector switch and a 50’s wiring scheme is used to minimise treble loss when rolling back the volume.
Hand wound Bare Knuckle unpotted humbuckers are fitted as standard with 'Mule' humbuckers chosen for their outstanding clarity, extended dynamic range and unmistakable vintage character.
S P E C I F I C A T I O N
BODY Mahogany centre block with hand carved spruce fillets. Depth 1.75" (44mm)
TOP Laminated maple
BACK & SIDES Laminated maple or mahogany
NECK Mahogany, comfy C profile, quarter sawn
SCALE LENGTH 24.75''
FINGERBOARD 12'' radius, dark rosewood, slightly rolled edges
NUT 43mm Bone
BINDING White - body & neck
FRETS 22 Dunlop 6100 jumbo wide/high or Dunlop 6105 medium narrow/high
MARKERS Mother of pearl 12th fret ‘Wave’ inlay plus dots
TRUSS ROD Adjustable double action
HEADSTOCK OVERLAY Ebony
LOGO Case logo inlayed in mother of pearl
BRIDGE Kluson Tuneomatic with lightweight stopbar or Pigtail wraparound
TUNERS Vintage Gotoh keystone
CONTROLS 2 x volume 2 x tone 500K CTS pots, Switchcraft 3-way selector switch
CAPACITORS Sprague Orange drop .022 bridge
FINISH High gloss nitrocellulose
COLOURS Tobacco burst, cherry red
PICKUPS Bare Knuckle 'Mule'
BRIDGE DC: 8.4 Magnet: Alnico IV
NECK DC: 7.3 Magnet: Alnico IV
PICKUP MOUNTING Invisible or black plastic rings (satinised)
CASE Hiscox hard shell
From £4,850
O P T I O N S Fretwire, Neck dimensions, controls, hardware, pickups can all be specified
O P T I O N A L E X T R A S
Bookmatched flame maple top +£350
Bookmatched quilted maple top, back and sides POA
Ebony fingerboard (slightly brighter response and durability). +£40
5-ply white/black/white/black/white body and headstock binding £350
Mother of pearl ‘Wave’ fret inlays +£250
Gold plated hardware + £50
Bigsby or Vibrola tremolo from £350
ABM tuneomatic roller bridge + £50
VINTAGE SERIES
Aged hardware, low lustre cellulose finish + £150
Aged hardware, high gloss or low lustre crazed cellulose finish + £300
Aged hardware, high gloss or low lustre crazed cellulose finish, chips dings and areas of wear + £450
