“My Case J3 is just such an incredible instrument,
it’s so inspiring to play”

DUDLEY ROSS - Guitarist and composer

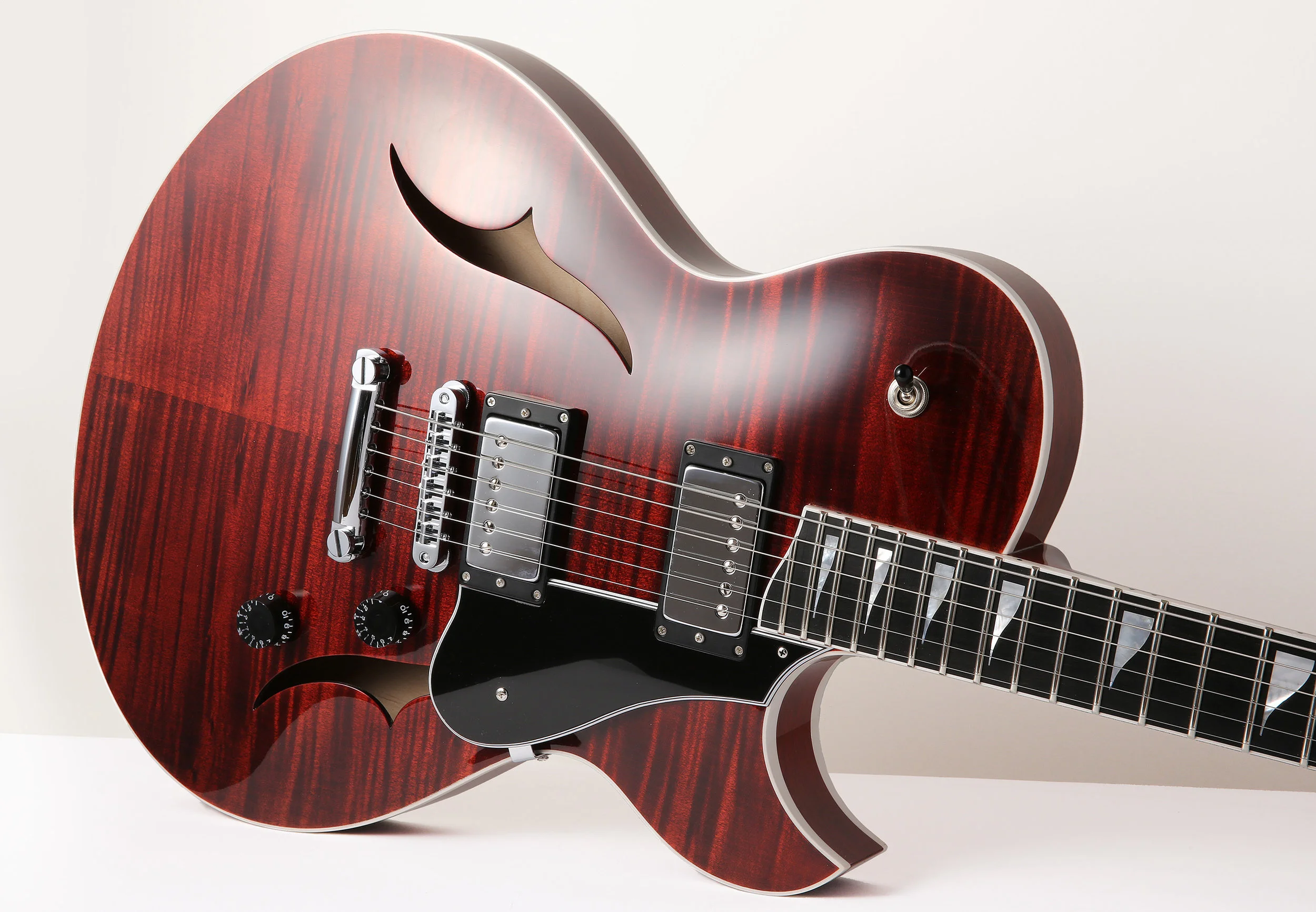

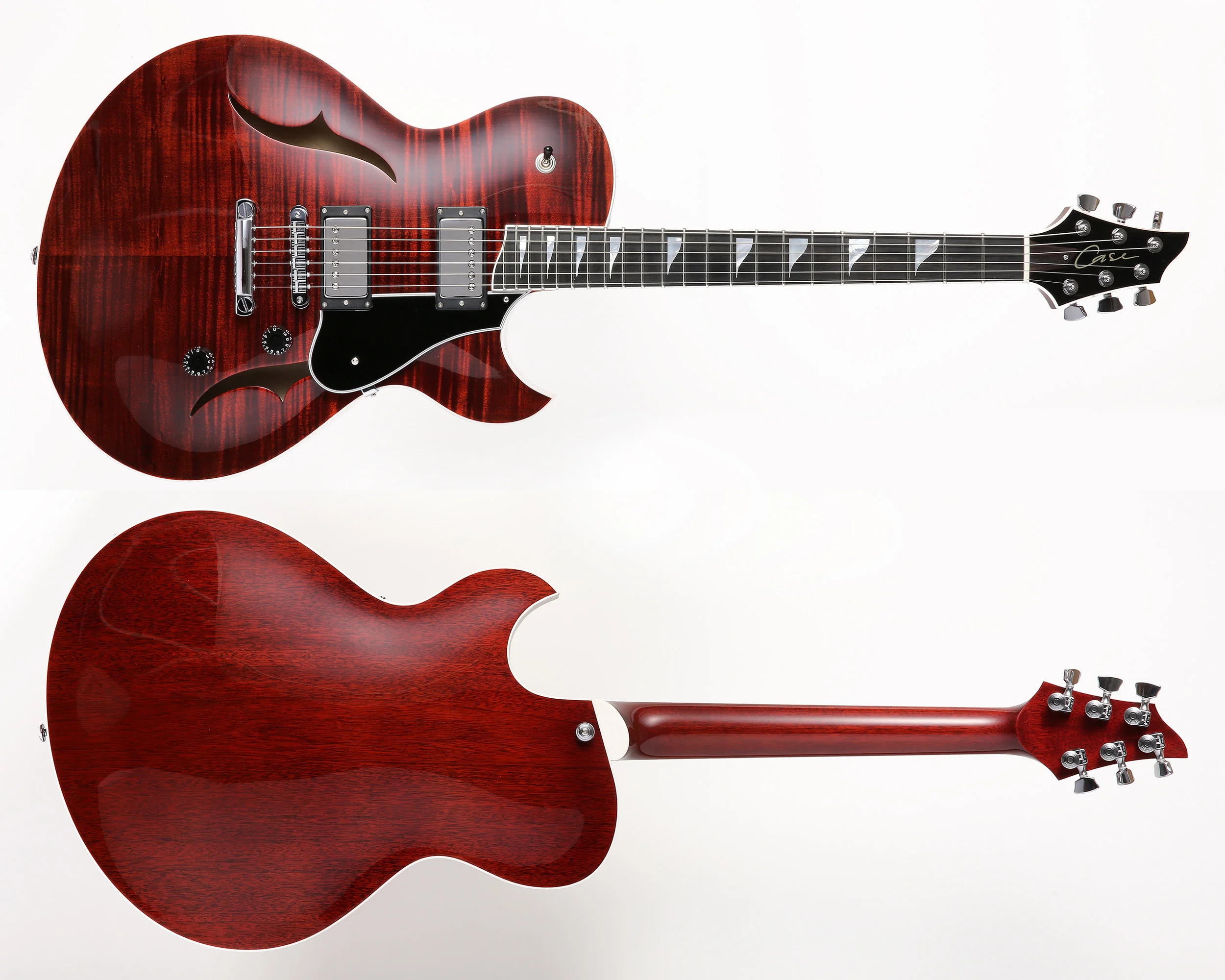

J3 semi-hollow

Laminated body with a spruce centre block and spruce fillets. Top, back and sides are made from carefully selected maple veneers and finished in dark cherry. The neck is made from quarter sawn mahogany making it very stable. The rosewood fingerboard is inlayed in mother of pearl.

All hardware is chrome plated and includes a vintage-style Gotoh tuneomatic bridge with a lightweight Gotoh stop bar. Sperzel tuners guarantee fine tuning and smooth operation. High quality CTS pots and a Switchcraft pickup selector switch are used with a 50’s wiring scheme to minimise treble loss when rolling back the volume.
Hand wound Bare Knuckle unpotted 'Mule' humbuckers are fitted for their outstanding clarity, extended dynamic range and unmistakable vintage character.

 S P E C I F I C A T I O N

BODY  Laminated maple, spruce centre block with carved spruce fillets. Depth 1.75"

Depth at sides 1 3/4” (44mm)

TOP   Maple or mahogany

BACK & SIDES  Maple or mahogany

NECK  Mahogany, comfy C profile, quarter sawn

SCALE  24.75''

FINGERBOARD  12'' radius, dark rosewood or ebony

NUT  43mm Bone

BINDING   White plastic - body & neck

FRETS  22 fat high

MARKERS  Mother of pearl 12th fret ‘Wave’ inlay plus dots

TRUSS ROD  Adjustable double action

HEADSTOCK OVERLAY  Ebony

LOGO Case logo inlayed in mother of pearl

BRIDGE  Gotoh tuneomatic and Gotoh lightweight stop bar

TUNERS  Sperzel or Gotoh vintage with ‘Tulip’ buttons

KNOBS  Top hat black

CONTROLS 500K CTS pots (master volume and master tone), Switchcraft 3-way selector switch

CAPACITOR  047 Sprague Orange drop

PICKGUARD  5-ply black & white laminated plastic

FINISH  High gloss nitrocellulose

COLOURS  Dark cherry or sunburst top with burst back and sides

PICKUPS  Bare Knuckle 'Mule'  humbuckers

BRIDGE  DC: 8.4 Magnet: Alnico IV

NECK  DC: 7.3 Magnet: Alnico IV

CASE  Hard case

Fretwire, Neck dimensions, controls, hardware, pickups can all be specified

From £4,850

OPTIONAL EXTRAS
Full mother of pearl 'Wave' fretboard inlays +£200
Multiple binding white/black/white/black/white body & headstock +£250
Book matched flame maple top, back and sides +£350
Quilted maple top, back and sides £POA
Gold plated hardware +£50
