It is a superb guitar, sounds just like my best LPs
but so much easier to play
TIM MILLS - Founder and md of Bare Knuckle Pickups
J1'59 BURST vs
Only the very best premium grade tops are selected for the J1'59. The construction of a maple top on a 1.75'' deep solid mahogany body gives this guitar an amazing natural sustain and resonance. We are careful to select lighter mahogany to keep the guitar weight down to around 8lbs. The neck is carved from quarter sawn mahogany, creating a very stable neck with a great feel. Rosewood is chosen for the fingerboard adding a warmth to the tone with each board being carefully selected for its rich, dark colour. Hand applied wood stains enhance the highly figured maple top before the many coats of cellulose lacquer are applied.
Only after polishing to high gloss, does the ageing process begin, crazing the lacquer and adding dings and wear just to the right places. The J1'59 Burst looks and feels every bit as good as it sounds.
All hardware is high quality and includes a vintage-style Faber tuneomatic bridge with a lightweight aluminium stop bar. The Gotoh vintage tuners have a 15:1 gear ratio for fine tuning and smooth operation. The J1’59 is fitted with high quality CTS pots, Switchcraft toggle switch and Sprague Orange Drop capacitors. A 50’s wiring scheme is used in all our guitars to minimise treble loss when rolling back the volume.
Bare Knuckle unpotted humbuckers are fitted as standard with a 'Mule' humbucker in the neck position for its outstanding clarity, extended dynamic range and unmistakable vintage character. A 'Riff Raff' pickup is selected in the bridge position for plenty of snap and a classic range of organic, clean and driven tones.
Ariel Posen
Dudley Ross
Richard Rozze
James Dean
S P E C I F I C A T I O N
BODY Mahogany - chambered (1.75"/44mm)
TOP Premium grade book matched maple
NECK Mahogany, quarter sawn
Nut width - 43mm
Width at 22nd fret - 56mm
Depth at first fret - 21mm
Depth at 12th fret - 23mm
SCALE LENGTH 24.75''
FINGERBOARD 12'' radius, dark rosewood / slightly rolled edges
NUT 43mm Bone
BINDING Body: reveal maple Neck: flame maple
FRETS 22 Dunlop 6100 wide/high or Dunlop 6105 narrow/high
MARKERS Mother of pearl ‘Wave’ inlays
TRUSS ROD Adjustable double action
HEADSTOCK OVERLAY Ebony
LOGO Case logo inlayed in mother of pearl
HARDWARE Nickel plated, aged
BRIDGE Faber Tuneomatic with lightweight alluminium stopbar
TUNERS Gotoh vintage 15:1 ratio
CONTROLS CTS volume and tone for each pickup, Switchcraft 3-way selector switch
CAPACITORS Sprague Orange Drop .022 bridge .015 neck
FINISH Aged, yellowing tint. High gloss or low lustre nitrocellulose
Checked or unchecked lacquer
Heavy or Light ageing
COLOURS Faded iced tea, faded lemon burst, faded honey burst (we can match your favourite burst)
CASE Hard case
PICKUPS Bare Knuckle humbuckers, aged nickel covers (other- specify your own preference)
BRIDGE Riff Raff DC: 8.2 Magnet: Alnico V
NECK Mule DC: 7.3 Magnet: Alnico IV
PICKUP RINGS Cream, vintage correct heights
Fretwire, Neck dimensions, controls, pickups, degree of ageing can all be specified
from £4,400

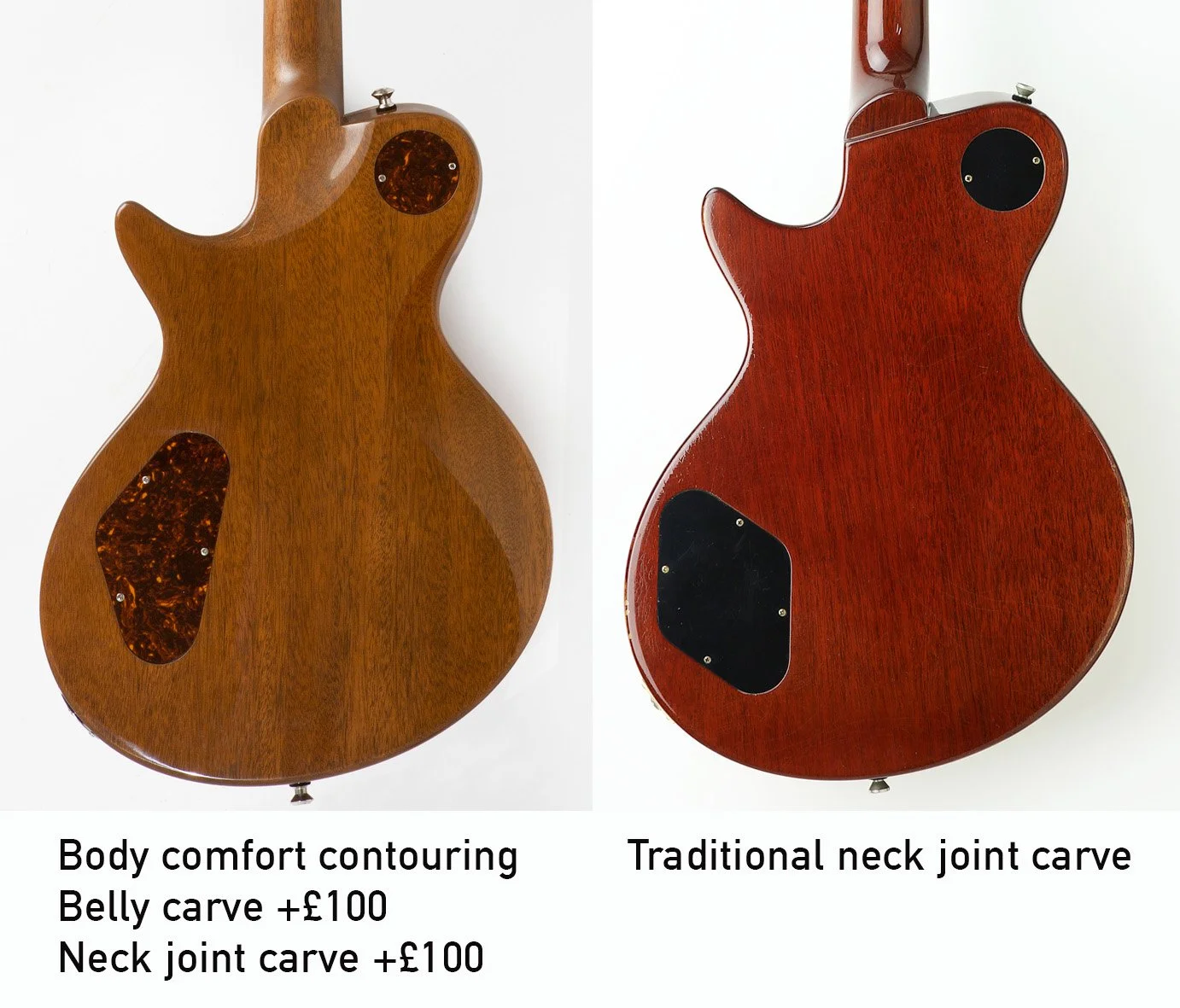

Body comfort contouring
Belly carve +£100
Neck joint carve +£100
