J1'59 burst vintage series

Check out the J1’59 Range

S P E C I F I C A T I O N

BODY  Solid swamp ash (1.75"/44mm)

TOP  Premium grade book matched flame maple with mineral streaks

NECK  One piece flame maple, quarter sawn

SCALE LENGTH  24.75''

FINGERBOARD  12'' radius, ebony / slightly rolled edges

NUT  43mm Bone

BINDING  Body and neck bound in cream plastic

FRETS  22 Dunlop 6100 jumbo

MARKERS  Mother of pearl wave inlays

TRUSS ROD  Adjustable double action

HEADSTOCK OVERLAY  Ebony

LOGO  Gold wetslide

HARDWARE  Nickel plated, aged

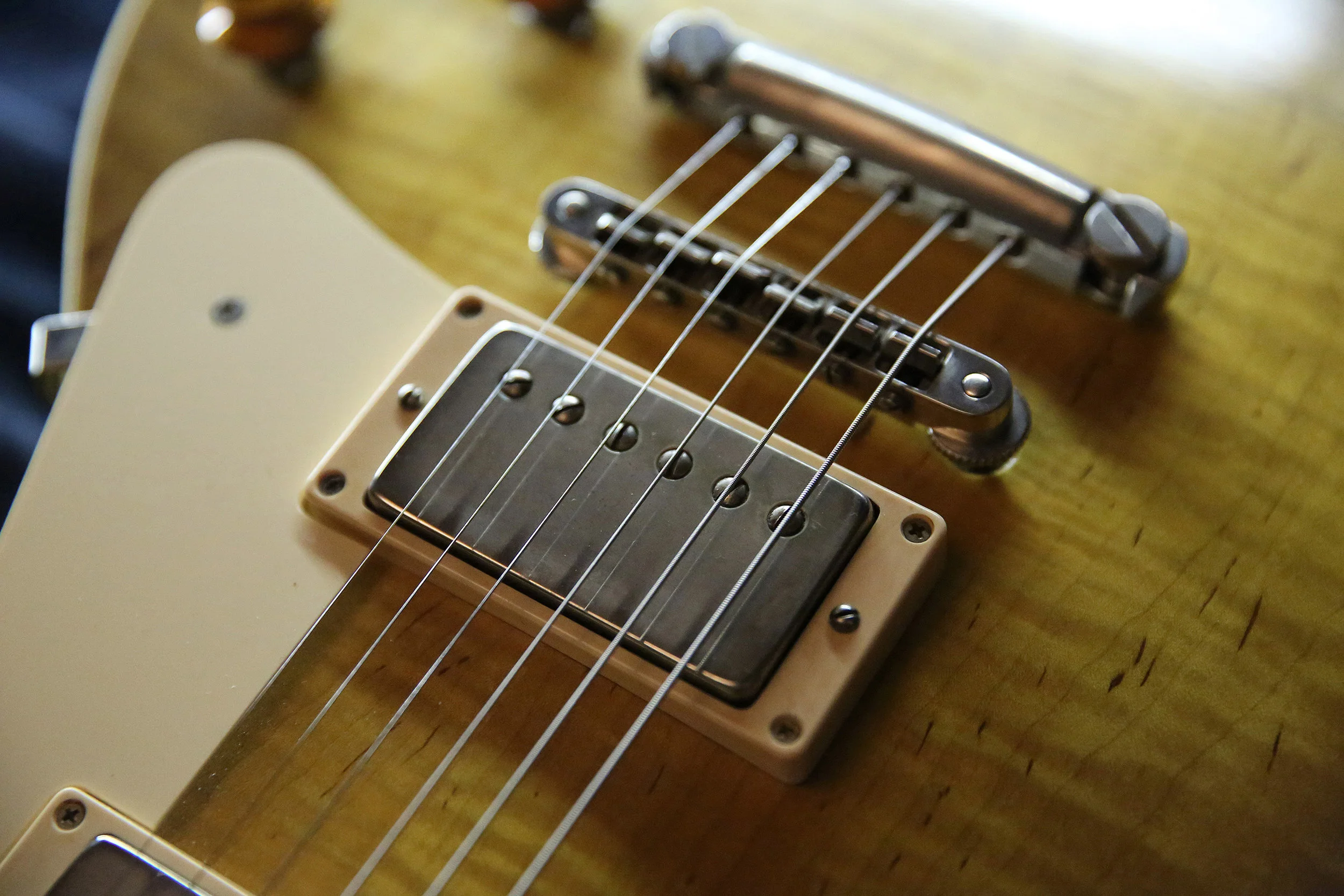

BRIDGE  ABM Tuneomatic with ABM lightweight stopbar

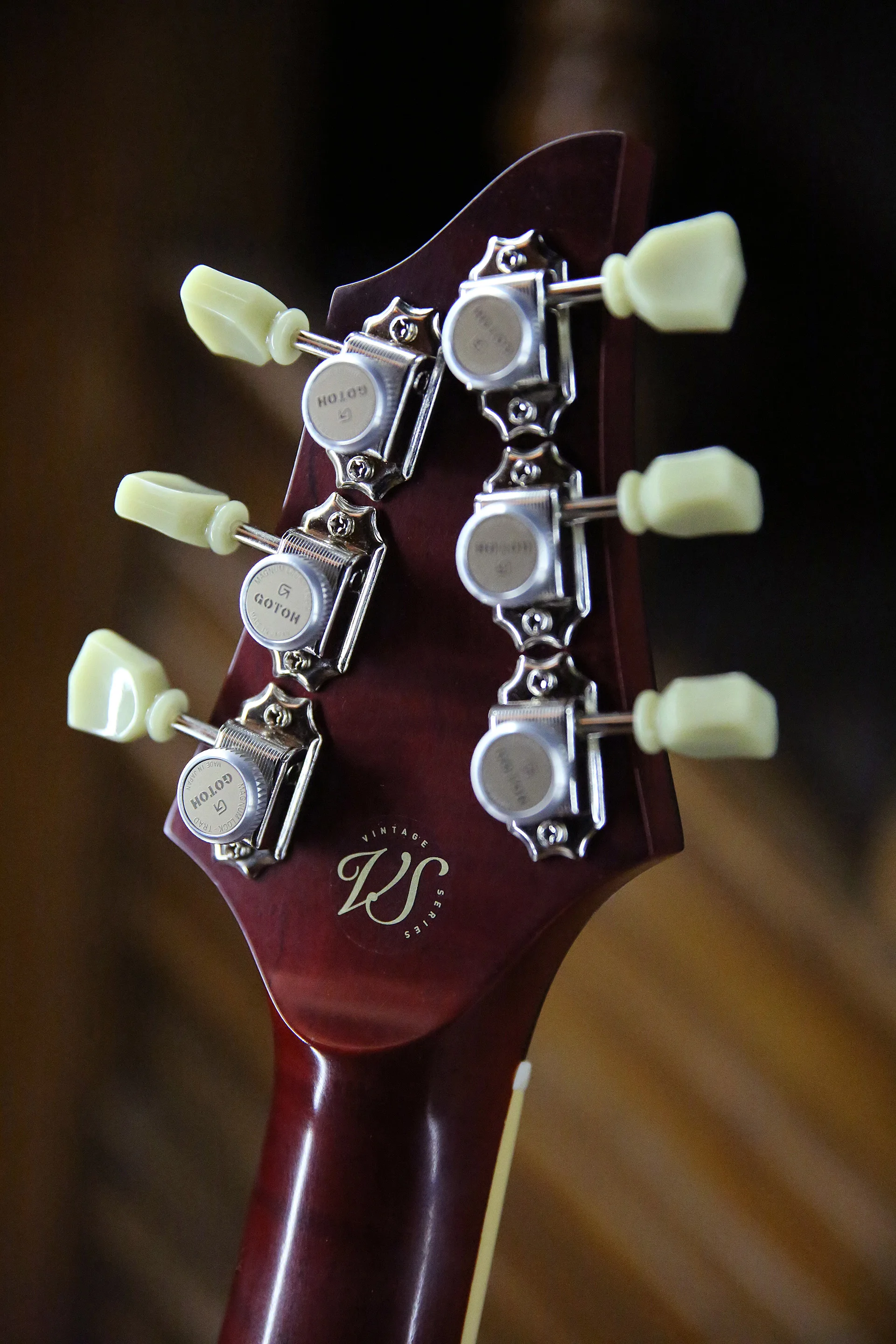

TUNERS  Gotoh locking keystone

CONTROLS  RS Guitarworks volume and tone for each pickup (push/push tone pot for split coils), Switchcraft 3-way selector switch

CAPACITORS  Jensen polyester/aluminium foil/tape wrap, bridge/0.02uf neck/0.01uf

FINISH  'Aged' nitrocellulose

COLOURS  Faded sunburst

WEIGHT  8.5lb 3.8kg

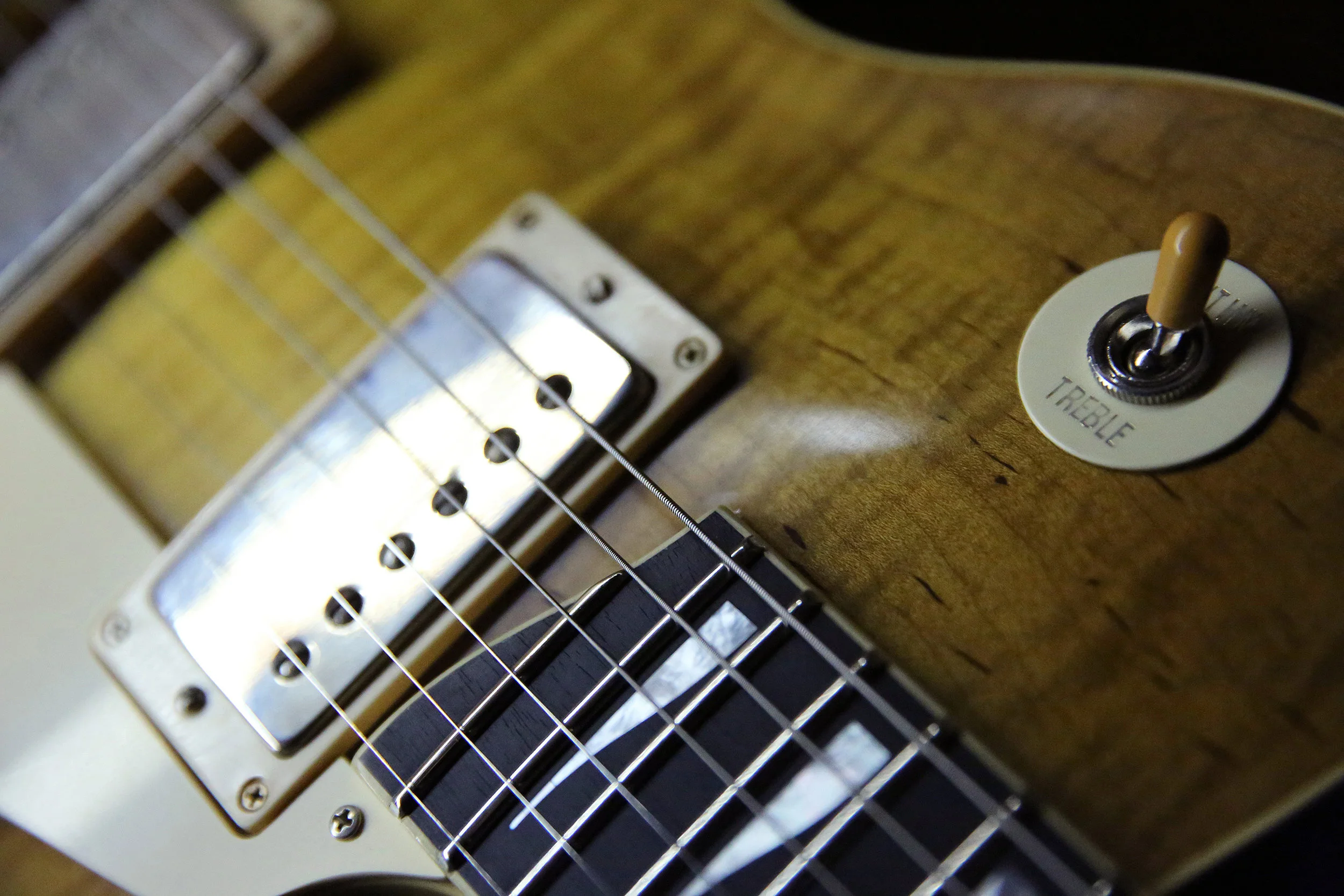

PICKUPS  Bare Knuckle Stormy Monday humbuckers, aged nickel covers

BRIDGE  DC: 7.7  Magnet: Alnico 2

NECK  DC: 7.1  Magnet: Alnico 2

Authentically vintage in both voicing and output, the Stormy Monday humbucker is handwound with vintage correct 42 AWG plain enamel wire and handcrafted with butyrate bobbins, calibrated sand cast Alnico II magnet, solid nickel silver baseplate and cover.

As with the early 'Patent Applied For' (PAF) humbuckers, the coils are wound asymmetrically for extended frequency response and touch sensitive feel. The Stormy Monday faithfully reproduces the tones of the brighter '57 and '58 era PAFs with smooth natural sustain, wonderful pick dynamics and string separation. Low notes have warmth and fullness; the highs are sweet and mellow while the mids are slightly scooped producing a soft, percussive vintage tone.

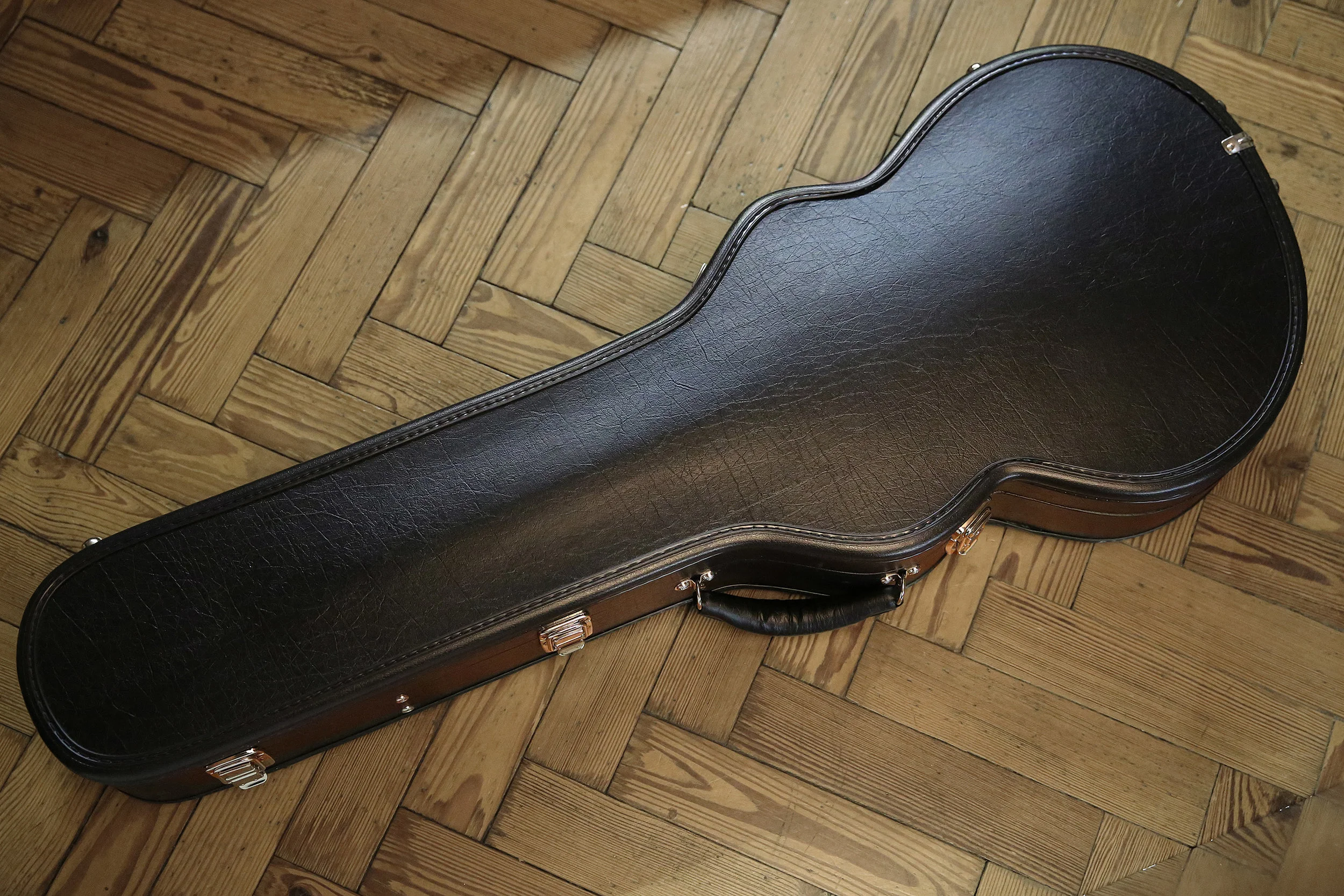

CASE  Hiscox hard shell

Ariel Posen playing the Case J1'59 Burst.
